Dish Satellite TV!

The dish satellite TV installation helps you install and configure your satellite dish with your TV to receive thousands of free live TV streaming, so you could watch the best channels from your dish network satellite TV.

You'll need to read the free live TV channels guidelines and the installation of the satellite TV network provided at Digital Cable TV, Digital Satellite TV and Direct TV Channels. Here is the continuation of those pages.

Before starting working on the information on the Dish Satellite TV, though, it is important to know that the Chinese dish TV equipments, as well as the Indian dish TV equipments and the Korean dish TV equipments are cheapest and best. This is not only an impression, but a fact to check and make sure of it.

It is said somewhere that when you opt to cancel your direct TV, or dish network satellite television service, you no longer have any access to use the relevant cable, dish, or receiver.

While that is true with cable TV channels, it is absolutely not true with satellite TV. You can still have your dish with its components to use it as you wish to watch thousands of Dish Satellite TV channels, which are totally free Direct TV Satellite channels.

So, you'll never need to pay for satellite digital TV channels, or either Digital Cable TV channels unless that is required by the rental real-estate company of your department and as long as the cost is included in your house rent bill, as some housing companies do in some places.

There are many dish TV receivers at your disposal to cancel your digital cable TV and depend only on free Dish Network Satellite TV to watch as many dish satellite TV channels, as you want.

To continue with the Satellite Direct TV installation, read the linked pages above and at Dish TV Channels and Satellite TV Channels and then continue with the dish satellite TV.

Continuing Dish Satellite TV Installation!

When connecting TV with Motorised System "DiSEqC 1.2" connect one end of the CA/Cinch cable to the RCA/Cinch jack on the back of the STB and the other end to the RCA/Cinch jack on your TV.

If you don't have the RCA/Cinch jack on your TV, connect one end of the RF cable to the TV Out on the back of the STB and the other end to the RF input on your TV.

Connect one end of your coaxial cable to the LNB IN connector on the STB and the other end to the REC or Receiver connector on the "DiSEqC 1.2" motor.

Connect the coaxial cable from the LNB to the LNB connector on the "DiSEqC 1.2" motor.

Note that all TRIAX receivers are designed with the "DiSEqC 1.0" and the "DiSEqC 1.2" compatibility to allow multiple antennas connection to the STB at the same time. For example, if you have more than one antenna and more than one LNB, use the "DiSEqC 1.0" switch. You'll get many dish satellite TV channels through this system.

To do this, connect the coaxial cable from the first LNB to the LNB 1, or LNB A input connector of the "DiSEqC" switch.

Do the same thing for the other LNBs that you have.

Connect one end of the coaxial cable to the RF output connector of the "DiSEqC" switch and connect the other end to the LNB IN socket on the STB.

See the manual in pictures and read the textual content at Direct Satellite TV, Free HD Satellite and Satellite TV Dish to understand this.

While connecting your equipments, you'll view the front panel displaying message with keys. The message of the 7-segment LED, which is the Light Emitting Diode on the STB and the keys look like this:

  • SEE - to indicate that the memo has been memorized.
  • U - C S - to operate manual search.
  • A - C S - to operate auto search.
  • Cub S - to select CVBS mode.
  • r 9 b - to select RGB mode.
  • tv - to select TV mode.
  • SAt - to select SAT mode.
  • dnLd - the download procedure.
  • UP9r - the upgrade procedure.
  • Endn - the program download through which the upgrade is normally complete.
  • End - the program download, or upgrade is normally complete.
  • HoSt - the download in master.
  • Errr - to indicate an error has happened.

See more insights on this at Satellite TV Installation, Streaming Satellite TV and Watch Satellite TV.

Setting Up Dish Satellite TV System!

Through the menu tree you could do many things. It looks like this in the panels included in the main menu:

Main Menu:

Channel List

Program Guide


Below the setup:

  • Menu Language.
  • SCART Output.
  • Screen Type.
  • Banner Time.
  • RF Output.
  • Other Settings.

Below the Other Setting:

  • Audio Language.
  • Time Adjust.
  • OSG Color.
  • OSG Transparency.
  • System Information.

Then follows the Installation panel with:

  • Channel Search.
  • Change PIN Code.
  • Parental Lock.
  • Receiver Lock.
  • Factory Reset.

Then follows the Common Interface panel and the Utility panel, which depends on the model you have with:

  • Bio Rhythm.
  • Calendar.
  • Othello Game.
  • Snake Game.

The Auto Search for Dish Satellite TV Channels!

When you automatically search channels for any satellite, you can automatically detect and save all dish satellite TV channels and TV radio stations of a satellite.

You will need to carry on with this dish satellite TV setting:

System Connection: Connect STB to all peripheral devices.

Power On: Turn on the power of the STB and other devices.

Mani Menu / Installation: Enter your PIN Code. Keep in mind the initial PIN is 0000. Select channel search in the Installation mode. Select the satellite of your choice to search by pressing UP / DOWN buttons and the OK button.

Channel Search / Auto: Press the red Auto button for the STB to automatically search all TV / Radio channels from a satellite and save them into the Channel List.

The Manual Search for Dish Satellite TV Channels!

The manual channel search for a transponder takes you over to automatically search and save all TV channels and radio stations of a transponder. You will use the Main Menu / Installation and the Channel Search / Manual.

At the Main Menu / Installation enter your PIN Code and then select Channel Search in the Installation mode. At the Channel Search / Manual select the satellite of your choice you want to search by pressing the UP / DOWN buttons and the OK button.

Press the Green manual button and then select the transponder from the transponder list which you want to search by pressing the UP / DOWN buttons and the OK button. Press the Red button for the STB to manually search for all channels in the selected transponder.

The Network Channel Search for Dish Satellite TV Channels!

The network channel search is no difference. You'll need to automatically detect and save all TV channels and radio stations of a satellite following the Main Menu / Installation and the Channel Search / Network.

At the Main Menu / Installation, enter your PIN Code. Select  Channel Search in the installation mode. At the Channel Search / Network, select the satellite of your choice to search by pressing the UP / DOWN buttons and the OK button.

Press the yellow network button, The STB will automatically search all TV channels and radio stations using the network mode and save them into your channel lists. Notice that when the network information is not properly broadcasted, all TP or channels may not be saved.

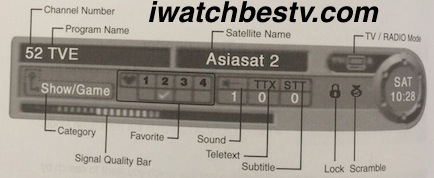

The basic function sees on the information screens. After programing all of the channels, you'll see the information box every time you switch between channels, as in the following image.

When the channel service changes, press the numeric buttons on your remote control to select the channel number you want.

Press the OK button on the remote control unit to select the channel you want from the channel list.

Press the CH+/CH- buttons on the remote control to select the channel you want.

Press the TV / Radio button on the remote control to change the TV / Radio channel.

Continue at Free Satellite TV.

For more insights about other digitals, see Digital and Video Products.
